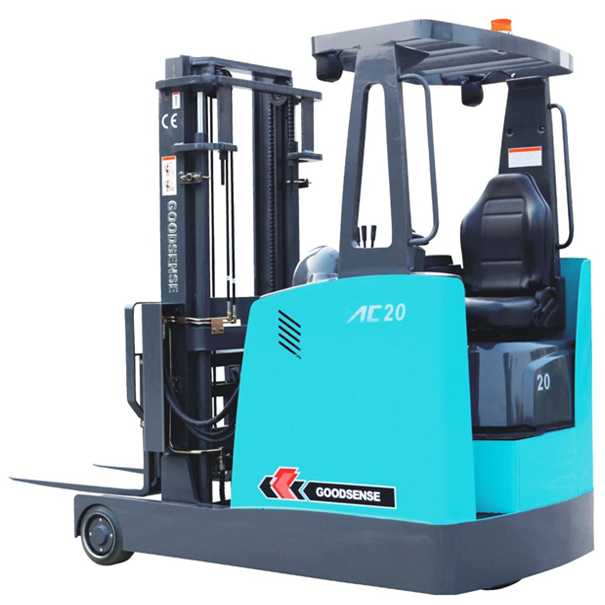

Reach Truck
Especificaciones
| Model | FBR15 | FBR18 | FBR20 | FBR25 | |||
| Power | Battery | Battery | Battery | Battery | |||
| Opeation | seated | seated | seated | seated | |||
| Rated load capacity | kg | 1500 | 1800 | 2000 | 2500 | ||
| Lift height | mm | 3000-8000 | 3000-8000 | 3000-8000 | 3000-8000 | ||
| Load centre | mm | 500 | 500 | 500 | 500 | ||
| Fork carriage tilt(F/R) | ° | 3/5 | 3/5 | 3/5 | 3/5 | ||
| （Loaded: 5m） Gradeability |
mm/s | 10 | 10 | 10 | 10 | ||
| Overall length | mm | 2248 | 2248 | 2345 | 2345 | ||
| Overall Width | mm | 1200 | 1200 | 1230 | 1230 | ||
| The fork declines height | mm | 2080 | 2080 | 2080 | 2080 | ||
| Free lift height | mm | 100 | 100 | 100 | 100 | ||
| The fork rises height | mm | 4007 | 4007 | 4007 | 4007 | ||
| Overhead Guard Height | mm | 2165 | 2165 | 2165 | 2165 | ||
| Fork size (L×W×T) | mm | 920×120×35 | 920×120×35 | 1070×120×40 | 1070×120×40 | ||
| Drive motor | Kw | 5 | 5 | 5 | 5 | ||
| Lif motor | Kw | 10 | 10 | 11 | 11 | ||
| Tyres | polyurethane tyre | ||||||
| Front Tire | φ254×102 | φ254×102 | φ267×114 | φ267×114 | |||
| Rear Tire | φ343×140 | φ343×140 | φ343×140 | φ343×140 | |||
