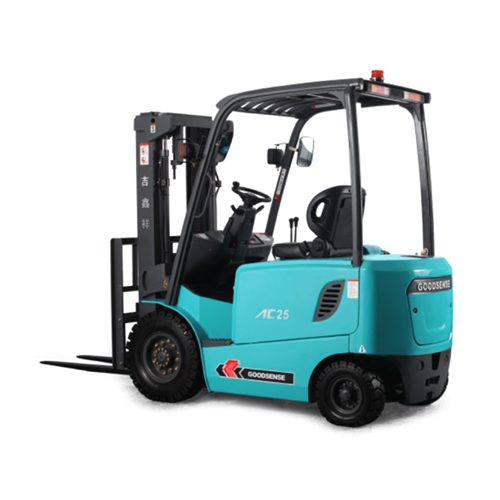

4-wheel Electric Forklift de 2 a 2.5 ton

Especificaciones

Type of model FB20 FB25
Power source Battery Battery
Rated load capacity kg 2000 2500
Load centre mm 500 500
Lift height mm 3000 3000
Fork size (L×W×T) mm 1070×120×40 1070×120×40
Fork carriage tilt(F/R) ° 6°/12° 6°/12°
Overall Length(Length to fork face) mm 2360 2360
Overall Width mm 1160 1160
Mast Lowered Height mm 2070 2070
Mast Extended Height mm 4020 4020
Overhead Guard Height mm 2240 2240
Wheelbase mm 1510 1510
Overall length(with forks) mm 3430 3430
Gradeability(Laden) % 15 15
Front Tire 7.00-12-12PR 7.00-12-12PR
Rear Tire 18×7-8-14PR 18×7-8-14PR
Backrest height(from upper fork face) mm 994 994
Free lift mm 125 125
Drive motor                        (皖南/SME) Kw 11.1/8 11.1/8
Lifte motor                          (皖南/SME) Kw 12/15 12/15
